Description
Important to know: This is an expansion sensor only.
The sensor is designed as a complementary component and requires connection and synchronization to a compatible weather station (433 MHz frequency). Without the base station, it is not possible to activate voice alerts, save measurement history, or view heat load and dew point calculations.

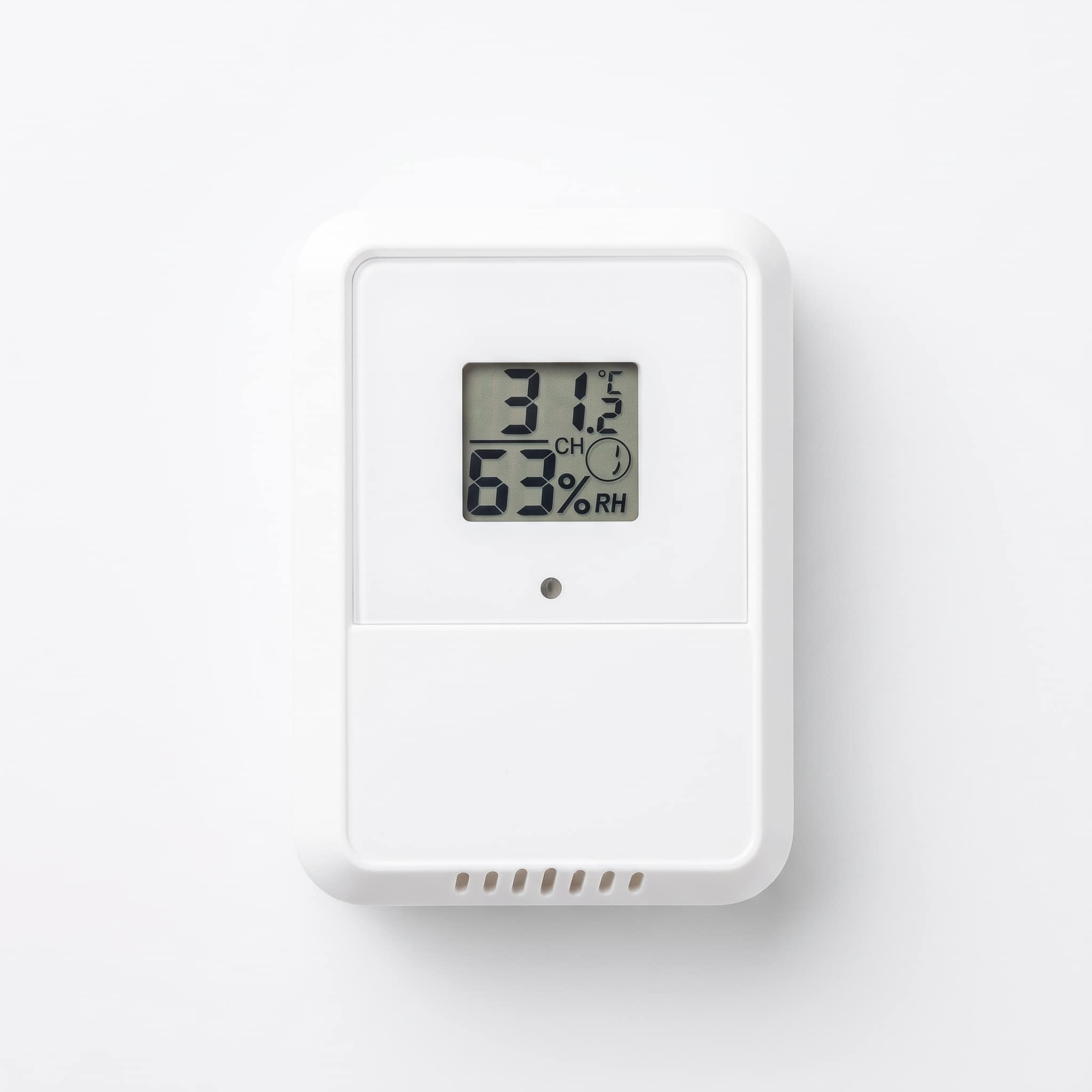

Wireless expansion sensor for greenhouse and home (Temperature and humidity)
A sensor for continuous monitoring of climate conditions near plants in greenhouses, grow rooms, wine cellars and at home. The sensor measures temperature and humidity in real time and transmits them to your base station.
Main advantages and features
Connection of up to 8 sensors to one station
You can connect up to 8 such sensors to one base station simultaneously (channels 1 to 8), and conveniently switch between them with the click of a button on the central screen.
Does not operate independently
The sensor is an end unit that transmits to the station. Connecting to the station allows for audible alerts about heat or dryness anomalies, record recording, and dew point calculations.
Wireless transmission range up to 100 meters
Transmission at a frequency of 433 MHz through walls inside the house (about 30 meters) and a range of up to 100 meters in an open line to the greenhouse or yard.
Built-in data screen and Celsius/Fahrenheit key
Quick viewing of temperature, humidity and associated channel directly next to the plants, alongside an internal selector for selecting the desired units of measurement.
Where should the sensor be placed?
Greenhouses and growth houses
Monitor humidity and temperature to identify conditions that may encourage fungus and mold, cold in winter, or heat stress in summer.
Wine cellars and pantries
Monitoring the storage conditions of wine bottles, dry food, and raw materials sensitive to climate change.
Bedrooms and home space
Continuously check ventilation and humidity levels in baby rooms, bedrooms or storage rooms to prevent mold and excessively dry air.
Full technical specifications
Full manufacturer data for the transmitting sensor unit
| Characteristic | Value and specifications | Operational note |
|---|---|---|
| System compatibility | Wireless weather station compatible with 433 MHz frequency | Does not work independently |
| Number of supported channels | Up to 8 separate channels (1 to 8) | Adjustment by internal switches on the back of the sensor |
| Temperature measurement range | Minus 40°C to 60°C (minus 40°F to 140°F) | Resolution 0.1°C, measurement accuracy ±1°C |
| Humidity measurement range | 10% to 99% relative humidity | Accuracy ±5% (in the range 20% to 90%) |
| Wireless transmission range | Up to 100 meters in an open field | Inside a building: approximately 30 meters (depending on the structure of the walls) |
| Transmission and update rate | Every 60 seconds | Includes built-in broadcast LED flash |
| Power source and batteries | 2 micro AAA batteries (not included) | It is recommended to use lithium batteries at temperatures below minus 20°C. |
| Physical dimensions | 75 × 53 × 22 mm | Compact and lightweight structure |
| Physical installation | Built-in rear hanging hole | To hang on a nail or screw in a shady place |
Sync and install in 3 easy steps
Channel tuning before batteries
Open the battery cover and set the tuning switches (1, 2 and 3) to the desired channel (1 to 8) and switch 4 to Celsius (°C). Before inserting the batteries.
Inserting batteries
Insert 2 fresh AAA batteries. The indicator light will turn on for 4 seconds and begin transmitting. The base station will automatically pick up the new channel.
Shady and protected location
Hang the sensor at a height of at least 1.5 meters, in a shaded place and without direct sunlight or pouring rain, for accurate and reliable measurement.
Frequently Asked Questions
Can the sensor work independently without a weather station? ▼
How many such sensors can be connected to one base station? ▼
Is the sensor resistant to water and direct rain? ▼
Additional information and supplementary equipment
- To complete the increase: Garden seedsCheck compatibility before combining products.
- To expand knowledge: Information about weather measurements – Hebrew Wikipedia (opens in a new window)The source explains the subject and is not an endorsement of the product or a substitute for the manufacturer's instructions.
Want to make sure the product is right for you? You are welcome to consult with Vinea Green., or select the appropriate option and proceed to booking based on the availability displayed.
